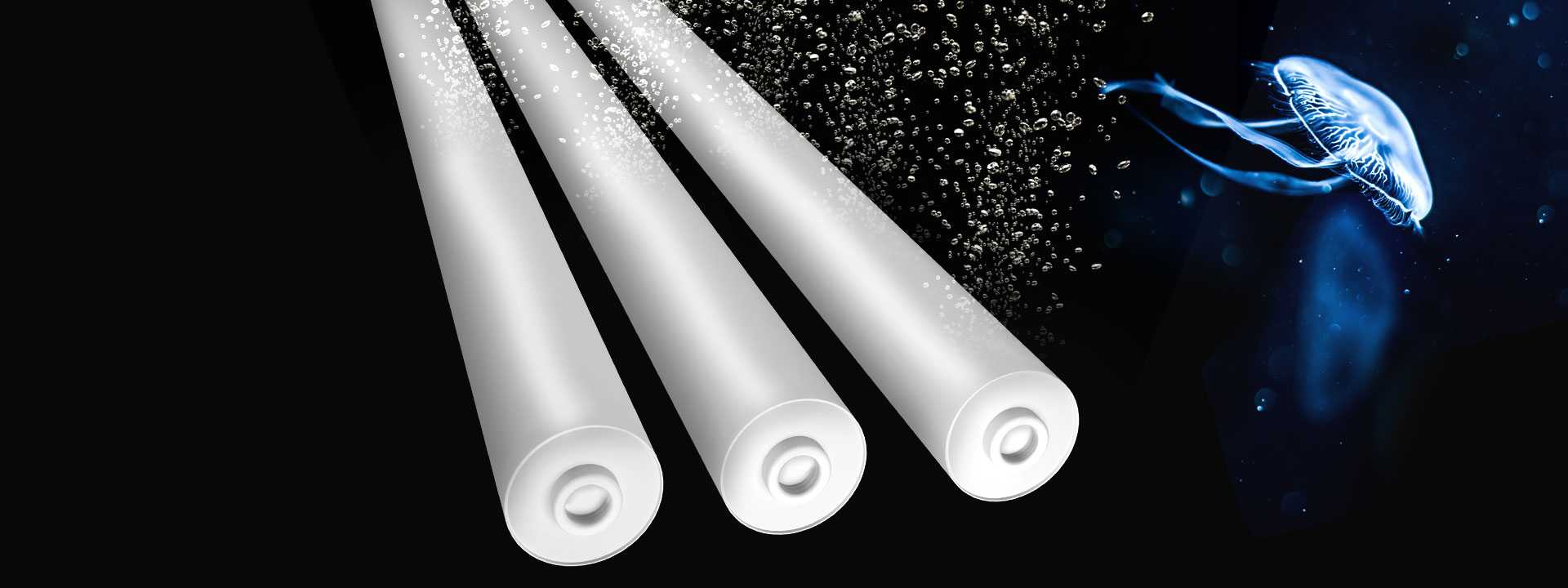

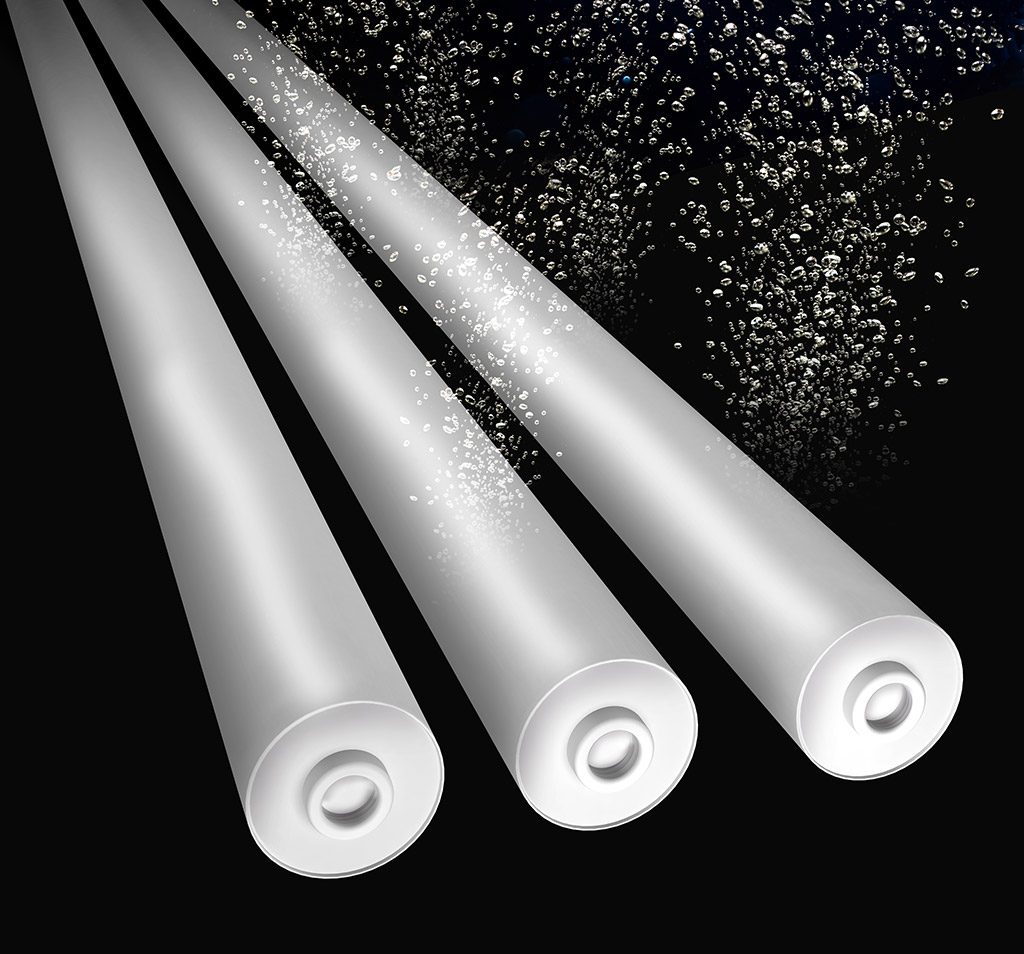

Newair® Tube diffuser is produced with ¾” screw connections for nipples (TBA series) or tie-rods screws (TBX series). It is made up of a high density special HDPE material with no resins. It’s characterised by having a high oxygen output and is provided with certification of suitability for use in drinking water or fish breeding applications.
Main properties:
• Integrated non return valves keep the tube aeration system clean.
• Quick and easy installation with screwed connection can be completed by one person.
• Porosity can be altered from 350μm to 120μm
• Standard length of the tubes can be altered from 500 up to 750 mm. Other measures are available on demand, anyway.
| Variant | Material | Size | Granulometry | Quantity | |
|---|---|---|---|---|---|
|
HDPE 500 mm fine bubbles |
HDPE | 500 mm | fine bubbles | ||
|
HDPE 750 mm fine bubbles |
HDPE | 750 mm | fine bubbles | ||
|
HDPE 1000 mm fine bubbles |
HDPE | 1000 mm | fine bubbles |
